The Project
Application: Public Access (Non domestic)
Location: Mount Vernon Hospital, Northwood
System: Modular Ramp and Platform
Requirements
The requirement for this project, was the supply and installation of a semi-permanent metal modular access ramp at a new ward entrance being installed as part of ongoing refurbishment works to the cancer centre at Mount Vernon Hospital. The requirement was for a ramp at the new entrance to the ward and provide stepped access from the main platform for ambulant users.

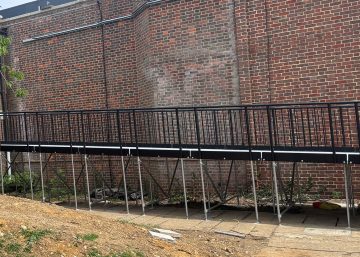

It was requested by the architect that the ramp would need to have a suitable gradient for a high footfall and for possible use by stretchers and hospital beds. During initial designs and then while the site survey was carried out, it was determined we would work to a 1 : 20 gradient and make the ramp 2.2m wide. From door threshold to finished ground level the overall drop was 1875mm, so to achieve a 1 : 20 gradient we needed 37.5m of ramp!
Owing to the increased footfall and use by hospital beds and trollies, our GRP surface was the perfect solution for this project as it is extremely tough, durable, and designed with enhanced slip resistance.
The install was not without its challenges; we were on site for 5 days in total while having to work around ongoing construction works, both inside and outside of the new ward entrance. The sheer size and overall height of the ramp proved an additional challenge, owing to manual handling considerations and getting all our equipment delivered to a site that was quite restricted for space.
Features
The ramp needed to be suitable and fit for purpose, following our site survey we determined that the ramp needed to have the following specification:
- Balustrade Handrails – These type of handrails is required at heights over 380mm for compliance with Building Regulations (Approved Document M)
- 1100mm high handrails – required on all level walkways (used at the main platform and turn platforms of ramp)
- The ramp was 37.5m in length to achieve 1 : 20 gradient
- Grey GRP surface – grade 24 (pedestrian grade)
- 1 : 20 gradient as per surveyors’ recommendation during survey
- Continuous handrails – we used our standard connectors which allow continuous handrails meaning we could ensure compliance with building regulations.

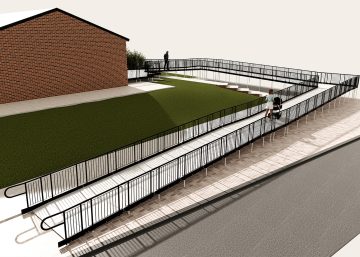

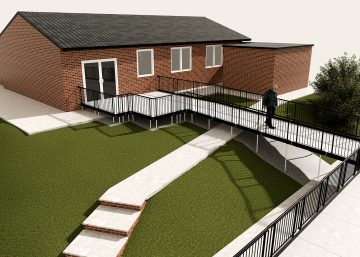

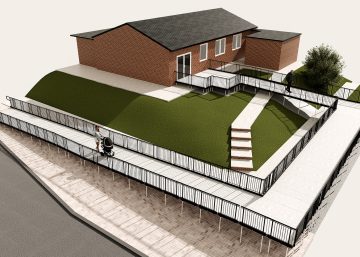

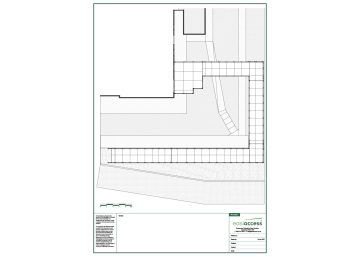

- Accompanying 2D plan and 3D elevation drawings.

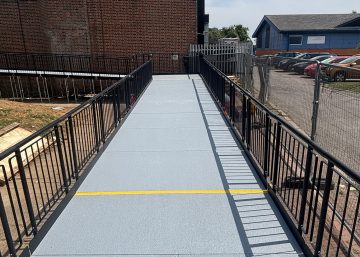

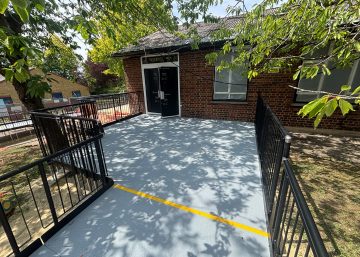

- Colour contrasting highlighted edges – these 55mm yellow strips provide a visual contrast for users with visual impairments.
- Threshold extension plate to provide a smooth transition from ramp to existing platform

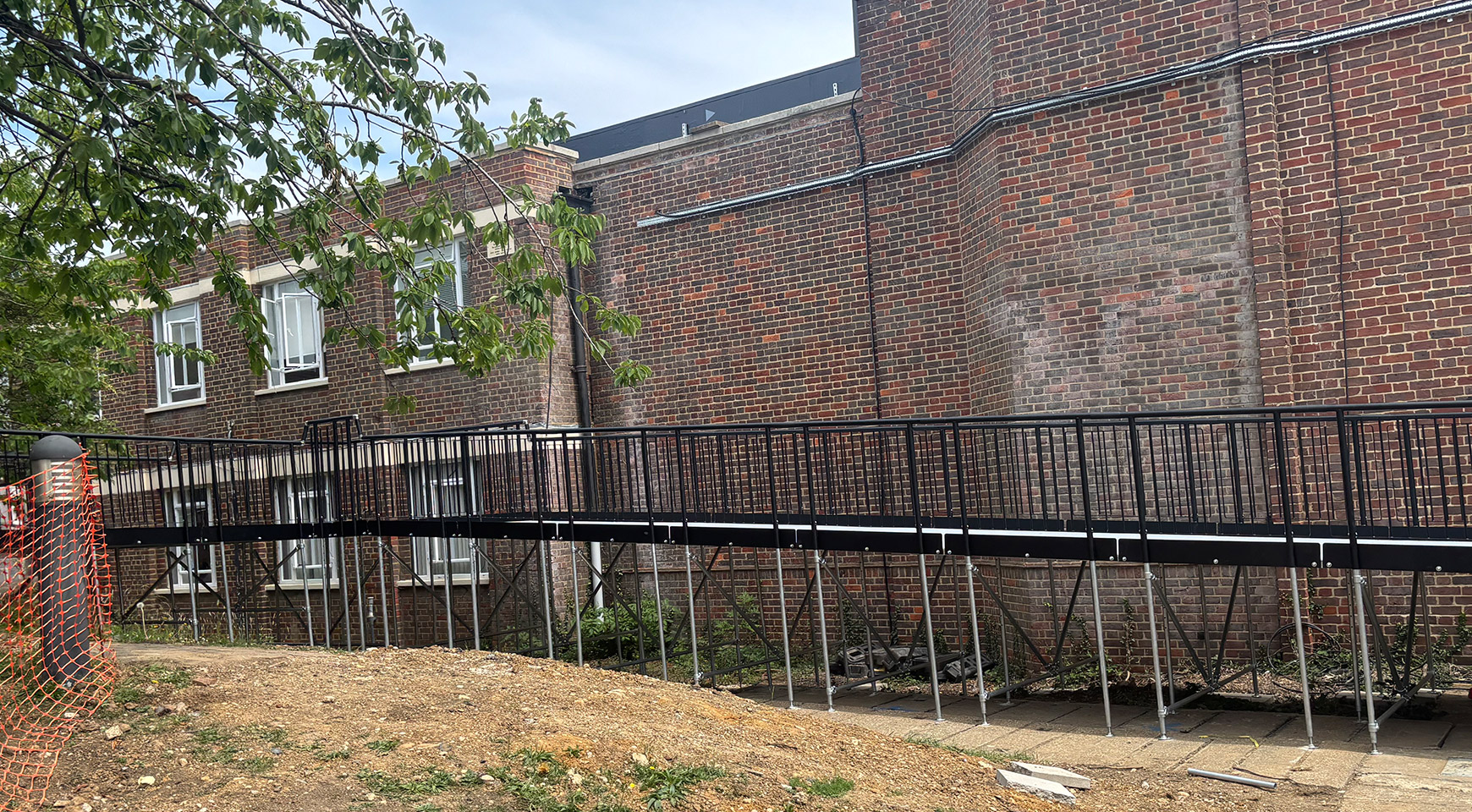

- Cross bracing to structure – legs were installed with a cross bracing to provide additional support for any ramp sections over 1m high.

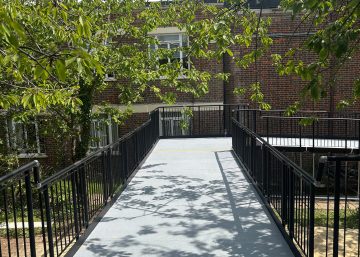

End Result
The install was completed after 36 hours on site; our installers were able to complete the work with the contractor on site and were in regular communication with the site manager. The site manager was able to assist Easiaccess with the unloading of the equipment to site given the restricted space of the hospital grounds, while also consulting with our team on any queries and providing full inductions and health safety updates to our teams.
Even though the ramp was significant in size and we were on site for 36 hours, the installation was relatively straight forward and the communication between our office staff, on site team and the contractor ensured everyone was aware of what works were going to be completed and that everyone was updated if and when any slight alterations were needed.
Conclusion
We are delighted with the outcome of this project, the ramp looks brilliant and it was great to work with this contract again, we appreciate them getting back in touch with us for another ramp and we would look forward to collaborating with them again on any future projects.
